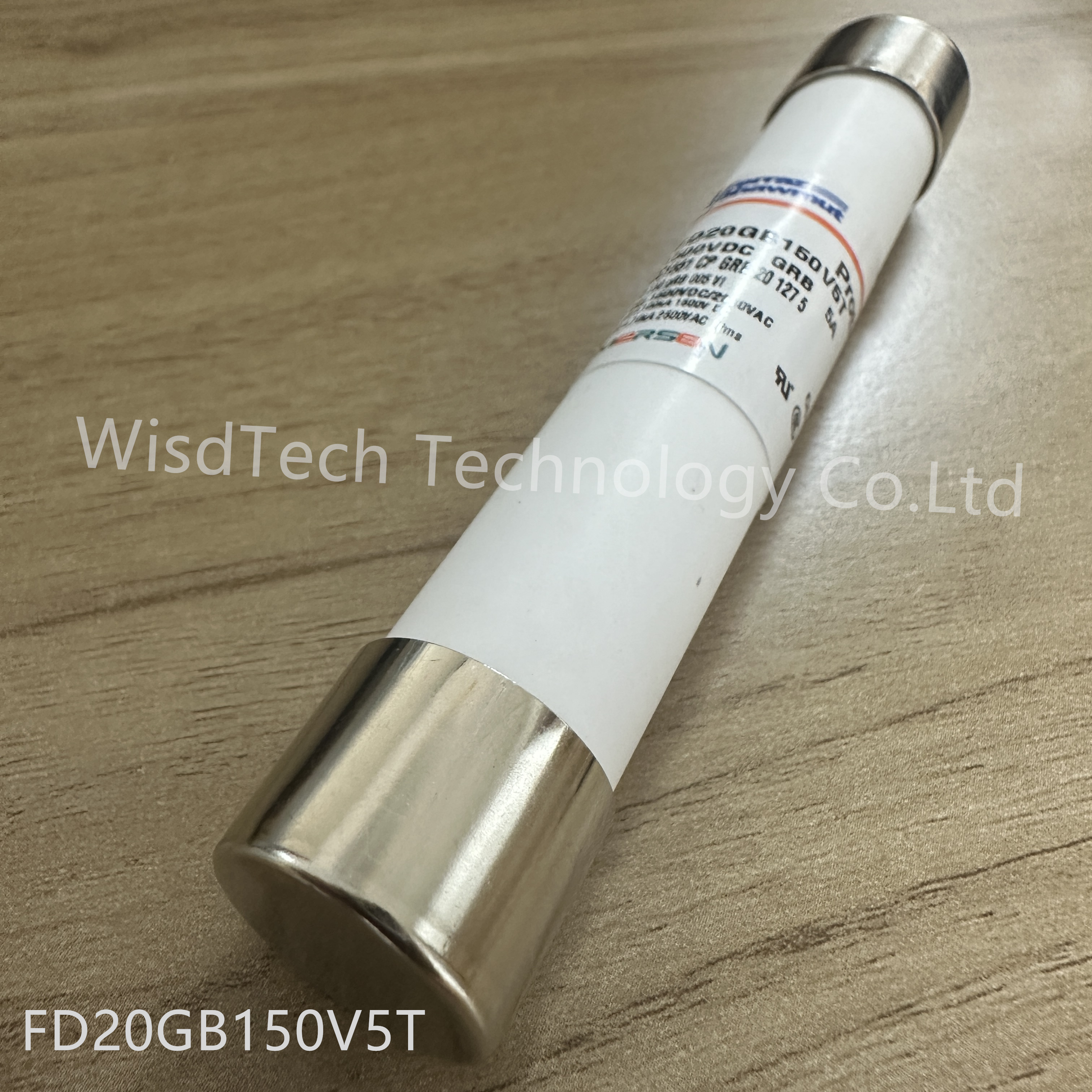

    FD20GB150V5T High-Speed Cylindrical Fuse protector Size 20x127 gR (gRB) 1500VDC IEC 5A With Striker

    Ask Lasest Price
    Price : Email us for details
    Payment Terms : Paypal,TT,Western Union
    • Product Details
    • Company Profile

    FD20GB150V5T High-Speed Cylindrical Fuse protector Size 20x127 gR (gRB) 1500VDC IEC 5A With Striker

    FD20GB150V5T High-Speed Cylindrical Fuse Protistor Size 20x127 gR (gRB) 1500VDC IEC 5A With Striker

    Manufacturer:Original
    Primary TypeFuse
    RoHS:
    Series:Protistor Series
    Type:Fuse link Fast-acting fuse
    Size:20 x 127 mm
    1000 to 1500 VDC
    Unit Weight:3.43 oz

    Overview

    Specially developed for DC applications, 20x127 gR cylindrical is a fast acting, full range fuse used in the protection of auxiliaries,

    control circuit and other measuring and monitoring devices.


    FEATURES & BENEFITS
    ●International 20x127mm (13/16"x5”) for worldwide acceptance
    ●gR Class according to VDE 636-23 and IEC 60269-4
    ●Low I2t for improved semiconductor


    protection
    ●Eliminate all overloads
    ●Extremely fast acting
    ●Current limiting
    ●Excellent cycling capability


    APPLICATIONS
    ●DC control circuit, measuring &monitoring auxiliaries circuit


    STANDARDS
    UL Recognized for some ratings
    ●UL file No. E76491
    ●IEC 60269-4 Compliance



    APPROVALS & STANDARDS

    • UL Recognized for some ratings
    • UL file No. E76491
    • IEC 60269-4 Compliance

    KEY FEATURES & BENEFITS

    Specially developed for DC applications, 20x127 gR cylindrical is a fast acting, full range fuse

    used in the protection of auxiliaries, control circuit and other measuring and monitoring devices.


    • International 20x127mm (13/16" x 5") for worldwide acceptance
    • gR Class according to VDE 636-23 and IEC 60269-4
    • Low I²t for improved semiconductor protection
    • Eliminate all overloads
    • Extremely fast acting
    • Current limiting
    • Excellent cycling capability
