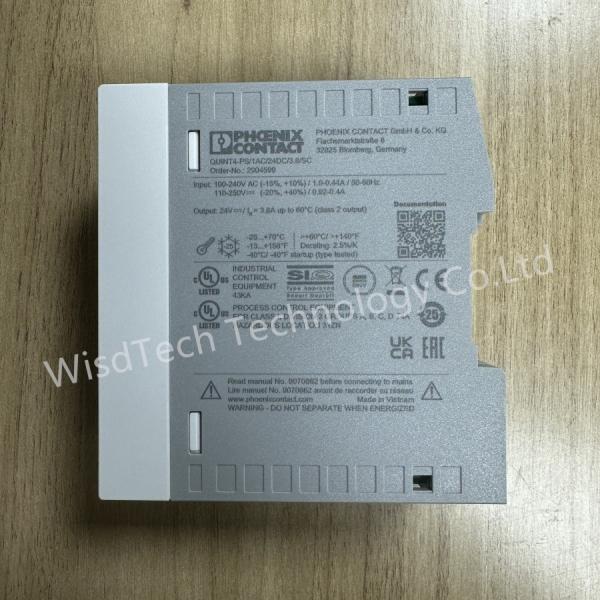

2904599 DIN Rail Power Supplies QUINT4-PS/1AC/24DC/ 2.5/SC

Description
QUINT POWER power supplies are exceptionally small yet
offer superior system availability in the sub 100 W power
range.

Powerful
- Dynamic boost of up to 200% (PN) for5s

Space-saving
-Slim design
Slim design for 120 mm control boxes

Preventive
-Function monitoring through adjustable signaling of
power thresholds or output voltage

Flexible connection technology
Tried-and-tested screw connection
Fast Push-in connection

Durable
Efficiency up to 93%
Low power dissipation

1. Input Voltage Range:

   • The input voltage range is 100-240 VAC, 50/60 Hz, single-phase.
   • This wide input voltage range allows the power supply to be used in different power grid environments.

2. Output Voltage:

   • The output voltage is 48 VDC.
   • 48 VDC is a common standard voltage used in industrial automation and telecommunications applications.

3. Output Current:

   • The rated output current is 1.05A.
   • This output current capacity is suitable for powering various medium-sized industrial loads.

4. Regulation Characteristics:

   • Load regulation: ≤1%
   • Line regulation: ≤0.5%
   • The output voltage remains stable, ensuring reliable operation of the connected devices.

5. Protection Functions:

   • Overload protection
   • Overvoltage protection
   • Overtemperature protection
   • Short-circuit protection
   • These protection features safeguard the power supply and the connected load devices.

6. Dimensions and Enclosure:

   • The power supply has a width of only 45mm, allowing it to be easily installed in control cabinets.
   • The metal enclosure is dust-proof and durable, suitable for industrial environments.

7. Certifications:

   • The power supply complies with safety standards such as UL, CE, and TUV, ensuring quality and safety.

8. Environmental Specifications:




   In summary, the 2904599 DIN Rail Power Supplies, with their compact size, high efficiency, multi-protection features, and extensive certifications, are well-suited for industrial automation systems that require reliable and stable power supply.

   • Operating temperature range: -25°C to +70°C
   • The power supply can withstand harsh industrial environments.
   • Performance Characteristics:
   • Output Power: 100W
   • High Efficiency up to 90%, enabling energy cost savings
   • Overload, Short-circuit, Overvoltage, and Overtemperature protection functions ensure device safety
   • Wide input voltage range of 100-240VAC, suitable for global power grids
   • Installation Features:
   • Compact 45mm width, allowing easy installation in space-constrained control cabinets
   • Complies with DIN rail mounting standards for quick and convenient installation
   • Rugged metal enclosure, dust-proof and suitable for harsh industrial environments
   • Application Areas:
   • Widely used in industrial automation control systems, traffic signal control, telecommunications equipment, and more
   • Certification Standards:
   • Complies with major safety certifications such as UL, CE, and TUV
   • Ensures product quality and safety
   • Environmental Specifications:
   • Wide operating temperature range: -25°C to +70°C
   • Excellent vibration and shock resistance
   • Highly reliable, suitable for critical applications requiring continuous power supply
