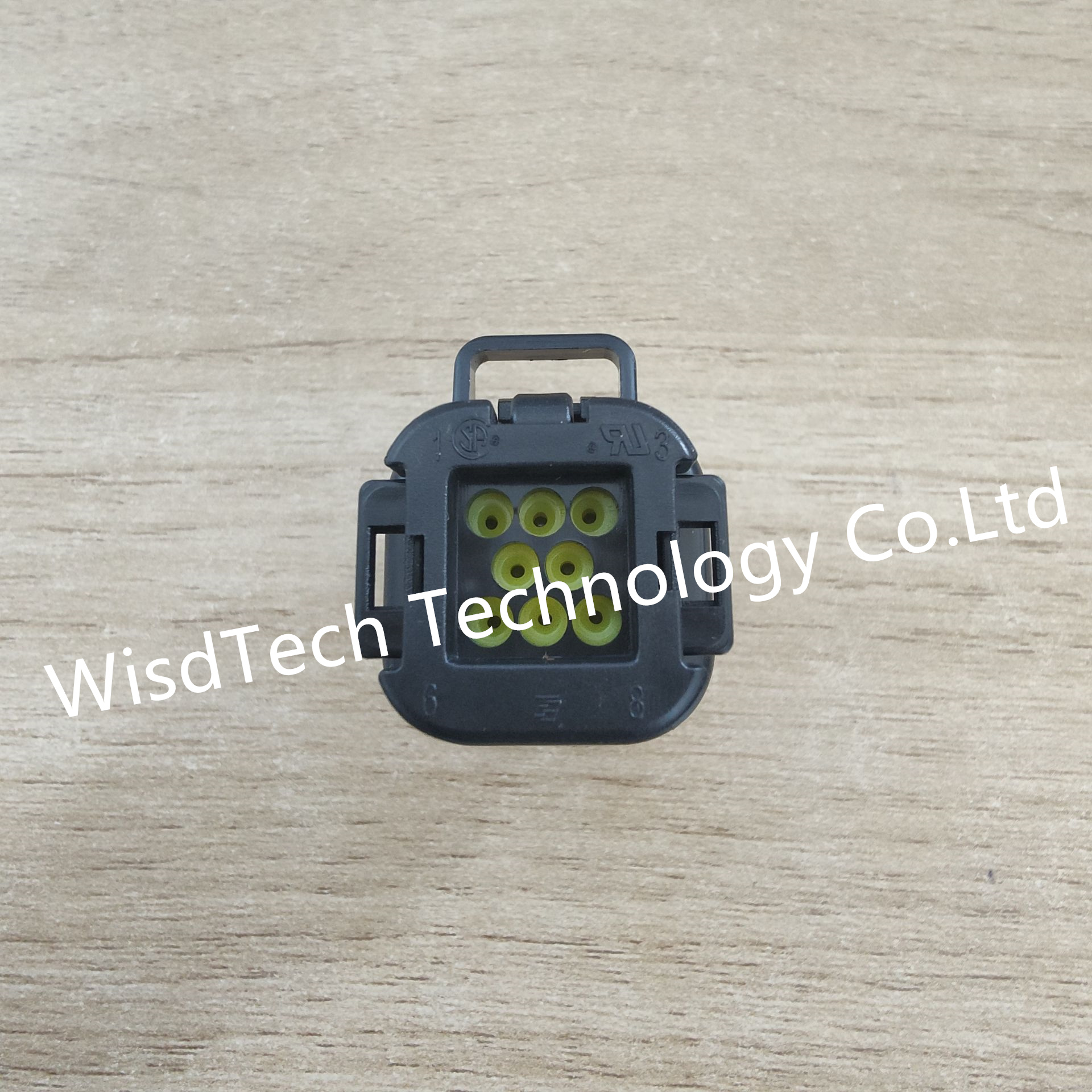

    776286-1 8 Rectangular Connectors - Housings Plug Black Automotive Connectors

    Ask Lasest Price
    Brand Name : TE Connectivity
    Model Number : 776286-1
    Price : Email us for details
    Payment Terms : T/T, Western Union
    Supply Ability : 2000pcs
    Delivery Time : 1day
    • Product Details
    • Company Profile

    776286-1 8 Rectangular Connectors - Housings Plug Black Automotive Connectors

    776286-1 8 Rectangular Connectors - Housings Plug Black Automotive Connectors

    776286-1 8 Rectangular Connectors - Housings Plug Black Automotive Connectors

    TE Connectivity
    Product Category: Automotive Connectors
    RoHS: Details
    REACH - SVHC:
    Housings
    -
    8 Position
    4 mm
    Plug (Male)
    Cable Mount / Free Hanging
    Crimp
    Tin
    20 AWG
    16 AWG
    Black
    Ampseal Sealed
    Application: Power, Signal
    Attachment Hole Diameter: 1.3 mm
    Brand: TE Connectivity
    Contact Material: Tin
    Contact Type: Pin
    Current Rating: 17 A
    Description/Function: AMPSEAL, Automotive Headers
    Flammability Rating: UL 94 V-0
    Height: 34.6 mm
    Ingress Protection: IP6K9K
    Length: 27.4 mm
    Lock Mate Feature: Integrated in Housing
    Material: Plastic
    Maximum Operating Temperature: + 125 C
    Minimum Operating Temperature: - 40 C
    Mounting Angle: Straight
    Number of Rows: 3 Row
    Product Type: Automotive Connectors
    Row Spacing: 4 mm
    Subcategory: Automotive Connectors
    Voltage Rating: 250 VAC
    Width: 33.6 mm
    Wire Gauge Range: 16 AWG to 20 AWG
    Unit Weight: 0.493835 oz

    Product Type Features

    • Connector Shape : Rectangular

    • Connector System : Wire-to-Board

    • Connector & Housing Type : Housing for Female Terminals

    • Sealable : Yes

    • Connector & Contact Terminates To : Wire & Cable

    • Primary Locking Feature : Integrated in Housing

    • Mixed & Hybrid Connector : No

    Configuration Features

    • Number of Positions : 8

    • Number of Rows : 3

    Electrical Characteristics

    • Operating Voltage (VAC): 250

    • Nominal Voltage Architecture (V): 250

    Body Features

    • Cable Exit Angle : 180°

    • Primary Product Color : Black

    • Connector & Keying Code : 1

    Contact Features

    • Contact Type : Socket

    • Contact Size : 1.3mm

    • Mating Pin Diameter : 1.3 mm [ .051 in ]

    • Contact Current Rating (Max) (A): 17

    Mechanical Attachment

    • Mating Alignment : With

    • Mating Alignment Type : Keyed

    • Strain Relief : Add By Accessory

    • Connector Mounting Type : Cable Mount (Free-Hanging)

    • Terminal Position Assurance : Yes

    Housing Features

    • Housing Material : PBT GF

    • Centerline (Pitch) : 4 mm [ .157 in ]

    Dimensions

    • Row-to-Row Spacing : 4 mm [ .157 in ]

    • Product Length : 27.4 mm [ 1.079 in ]

    • Product Width : 33.6 mm [ 1.323 in ]

    • Connector Height : 34.6 mm [ 1.362 in ]

    Usage Conditions

    • Operating Temperature (Max) : 125 °C [ 257 °F ]

    • Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

    Operation/Application

    • Circuit Application : Power & Signal

    Industry Standards

    • UL Flammability Rating : UL 94V-0

    • Degree of Protection : IP67, IP69K

    Packaging Features

    • Packaging Method : Box & Tray

    • Packaging Quantity : 280

    Other

    • Connector Position Assurance Capable : Yes

    • Serviceable : Yes
