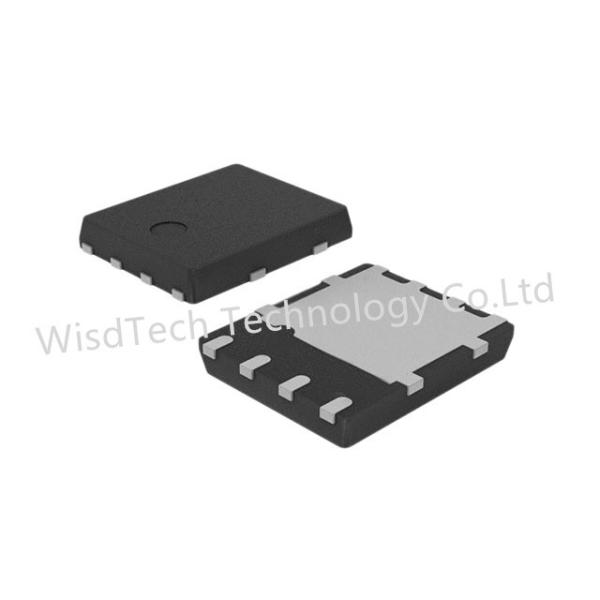

    STL150N3LLH5 N-CH MOSFET IC 30V 195A POWERFLAT N P Channel Mosfet

    Ask Lasest Price
    Brand Name : STMicroelectronics
    Model Number : STL150N3LLH5
    Price : Email us for details
    Payment Terms : T/T, Western Union
    Supply Ability : 3000pcs
    Delivery Time : 1day
    • Product Details
    • Company Profile

    STL150N3LLH5 N-CH MOSFET IC 30V 195A POWERFLAT N P Channel Mosfet

    STL150N3LLH5 MOSFET N-CH 30V 195A POWERFLAT N P Channel Mosfet

    STMicroelectronics
    Product Category:MOSFET
    RoHS:Details
    Si
    SMD/SMT
    PowerFLAT-5x6-8
    N-Channel
    1 Channel
    30 V
    150 A
    1.75 mOhms
    - 22 V, + 22 V
    - 55 C
    + 150 C
    80 W
    Enhancement
    STripFET
    STL150N3LLH5
    Reel
    Cut Tape
    MouseReel
    Brand:STMicroelectronics
    Configuration:Single
    Fall Time:47.8 ns
    Height:0.81 mm
    Length:5 mm
    Product Type:MOSFET
    Rise Time:30.8 ns
    Subcategory:MOSFETs
    Transistor Type:1 N-Channel
    Typical Turn-Off Delay Time:65.8 ns
    Typical Turn-On Delay Time:17.2 ns
    Width:6 mm
    Unit Weight:0.002681 oz


    Description
    This STripFET™V Power MOSFET technology is among the latest improvements, which have been
    especially tailored to achieve very low on-state resistance providing also one of the best-in-class FOM.
    This product utilizes the 5th generation of desigen rules of ST's proprietary STripFET TM technology- .
    The 1owest available RDS(on)*Qg. in this chip scale package. makes this device suitable for the most
    demanding DC-DC converter applications, where
    high power density is to be achieved.
    Features
    ■ RDS(on) * Qg industry benchmark
    ■ Extremely low on-resistance RDS(on)
    ■ High avalanche ruggedness
    ■ Low gate drive power losses
    Application
    ■ Switching applications

    The STL150N3LLH5 is a N-channel power MOSFET transistor manufactured by STMicroelectronics.

    It is part of the STripFET™ V series and is designed for high-efficiency, low-dropout applications.

    This MOSFET has a maximum drain-to-source voltage of 30V and a continuous drain current of 35A [1].


    Key specifications of the STL150N3LLH5:

    • Type: N-channel power MOSFET
    • Vgs (Gate-to-Source Voltage): ±22V
    • ID (Continuous Drain Current): 35A
    • Rds On (Max) @ Id, Vgs: 1.75mΩ @ 17.5A, 10V
    • Package/Case: 8-PowerVDFN
    • Operating Temperature: -55°C to 150°C
    • Power Dissipation-Max: 114W Tc
    • Gate Charge (Qg) (Max) @ Vgs: 40nC @ 4.5V
    • Turn-On Delay Time: 17.2ns
    • Turn-Off Delay Time: 65.8ns
    • Rise Time: 30.8ns
    • Fall Time (Typ): 47.8ns
    • Avalanche Energy Rating (Eas): 300mJ
    • Dimensions: 5mm x 6mm x 950μm [3]

    Applications:

    • Power supplies and switching power supplies
    • Motor control
    • Amplifiers
    • Automation industry for switching surge currents
