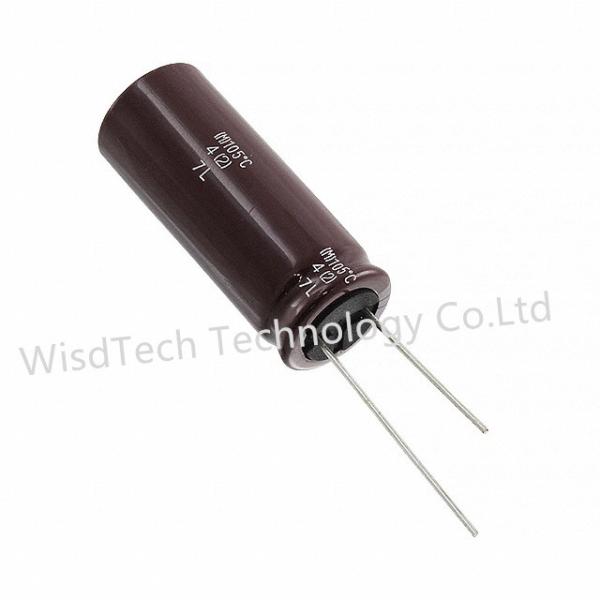

    EKYB630ELL182ML40S CAP ALUM 1800UF 20% 63V Radial Electrolytic Capacitors

    Ask Lasest Price
    Brand Name : Chemi-Con
    Model Number : EKYB630ELL182ML40S
    Price : Email us for details
    Payment Terms : T/T, Western Union
    Supply Ability : 1000PCS
    Delivery Time : 1day
    • Product Details
    • Company Profile

    EKYB630ELL182ML40S CAP ALUM 1800UF 20% 63V Radial Electrolytic Capacitors


    EKYB630ELL182ML40S CAP ALUM 1800UF 20% 63V RADIAL Electrolytic Capacitors

    Chemi-Con
    Product Category:Aluminum Electrolytic Capacitors - Radial Leaded
    RoHS:Details
    Low Impedance Electrolytic Capacitors
    Radial
    1800 uF
    63 VDC
    + 105 C
    16 mm
    7.5 mm
    40 mm
    10000 Hour
    20 %
    3.59 A
    - 40 C
    Straight
    16 mOhms
    KYB
    Bulk
    Brand:Chemi-Con
    Product Type:Electrolytic Capacitors
    Subcategory:Capacitors
    Type:Miniature Aluminum Electrolytic Capacitor

    KYB Series

    ・Low impedance, high ripple and long life from KYA series

    ・Newly innovative electrolyte is employed to minimize impedance

    ・Endurance with ripple current : 4,000 to 10,000 hours at 105℃

    ・Non solvent resistant type


    The EKYB630ELL182ML40S is a specific model of aluminum electrolytic capacitor manufactured by

    Nippon Chemi-Con Corporation. It belongs to the KYB series, which is a line of radial lead type

    aluminum electrolytic capacitors known for their long life, low impedance, and suitability for power

    supply output smoothing applications [1].

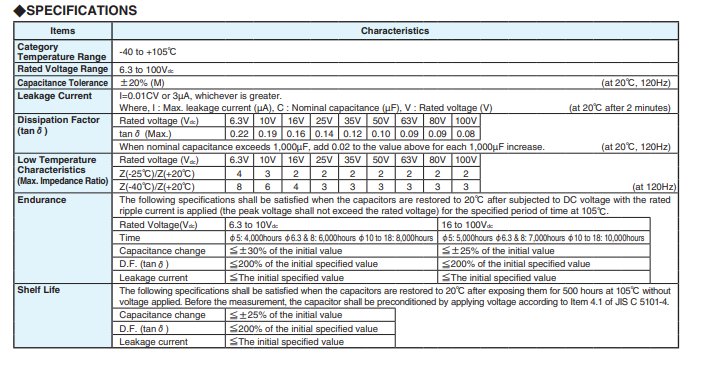

    Here are some key specifications and features of the EKYB630ELL182ML40S capacitor [1]:

    • Part Number: EKYB630ELL182ML40S
    • Status: In Production
    • Series: KYB
    • Polarity: Polar
    • Category Temperature Range: -40 to 105 ℃
    • Rated Voltage: 63 Vdc
    • Capacitance: 1800 µF
    • Capacitance Tolerance: -20 to 20% (M) / 20℃, 120Hz
    • Internal Resistance (Typ.): Not specified
    • Internal Resistance (Max.): Not specified
    • Dimensions: 16mm (Diameter), 40mm (Length)
    • Rated Ripple Current: 3590mArms / 105℃ / 100kHz
    • Impedance: 0.016Ω max / 20℃ / 100kHz, 0.064Ω max / -10℃ / 100kHz
    • Leakage Current: 1130 μA max / 20℃, after 2 minutes
    • Dissipation Factor (tanδ): 0.09 max / 20℃, 120Hz
    • Terminal Coating: Sn
    • Reference Weight: 13g
    • Minimum Order Quantity: 250 pcs
    • RoHS Compliant: Yes
    • The EKYB630ELL182ML40S is a specific model of aluminum electrolytic capacitor manufactured by

      Nippon Chemi-Con Corporation. It belongs to the KYB series, which is a line of radial lead type

      aluminum electrolytic capacitors known for their long life, low impedance, and suitability for power

      supply output smoothing applications [1].

      Here are some key specifications and features of the EKYB630ELL182ML40S capacitor [1]:

    • Part Number: EKYB630ELL182ML40S
    • Status: In Production
    • Series: KYB
    • Polarity: Polar
    • Category Temperature Range: -40 to 105 ℃
    • Rated Voltage: 63 Vdc
    • Capacitance: 1800 µF
    • Capacitance Tolerance: -20 to 20% (M) / 20℃, 120Hz
    • Internal Resistance (Typ.): Not specified
    • Internal Resistance (Max.): Not specified
    • Dimensions: 16mm (Diameter), 40mm (Length)
    • Rated Ripple Current: 3590mArms / 105℃ / 100kHz
    • Impedance: 0.016Ω max / 20℃ / 100kHz, 0.064Ω max / -10℃ / 100kHz
    • Leakage Current: 1130 μA max / 20℃, after 2 minutes
    • Dissipation Factor (tanδ): 0.09 max / 20℃, 120Hz
    • Terminal Coating: Sn
    • Reference Weight: 13g
    • Minimum Order Quantity: 250 pcs
    • RoHS Compliant: Yes
