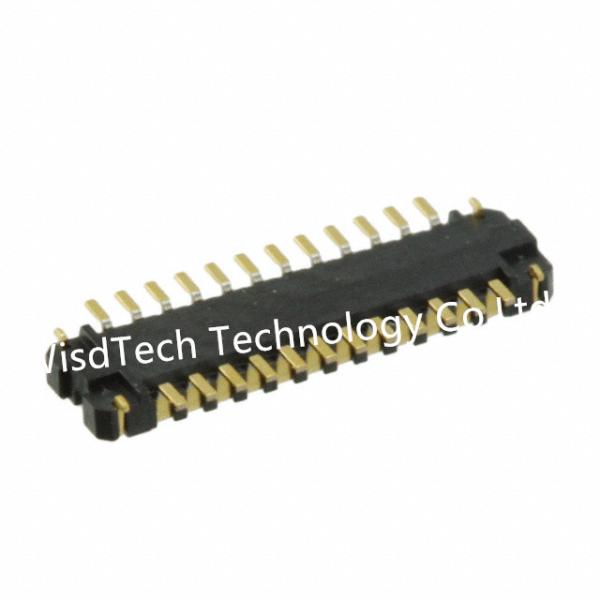

BM10B(0.8)-24DP-0 4V(51) Board to Board & Mezzanine Connectors 0.4MM FPC TO BOARD 24P HDR 0.8 HGHT

Features

1. Higher density of the board-mountedcomponentsExtremely small board mounting pattern and low

abovetheboard profile makes the connectors ideally suited for smalldevice applications.Globally unrivalled

compact depth:when mated 2.98mm Header 2.46mmLength - world’s smallest class:10.4mm

2. Reliable electrical and mechanical connectionDespite its small mated height, unique contact configuration,with

a 2-point contacts and effective mating length of0.2mm(height 0.8mm)and 0.1mm(height 0.6mm),

assureshighly reliable connection while confirming a complete matingwith a definite tactile feel.

3. Large self-alignment distanceThe connectors will self-align within 0.3 mm.

4. Built-in shock absorbing featureThe protrusions and indents in the insulator bodies protect theconnectors

from failures when exposed to sudden impact.5. Solder wicking preventionNickel barriers prevent un-intentional

solder wicking.6. Contamination protectionInsulator walls protect the contact areas against flux splatter orother

physical particles contamination.7. Conducive traces on the PCB can run underthe connectorNo exposed contacts

on the bottom of the connector.
