    34.51.7.024.0010 Electromagnetic SPDT Relay Ucoil 24VDC 6A

    Ask Lasest Price
    Price : Email us for details
    Payment Terms : T/T, Western Union
    • Product Details
    • Company Profile

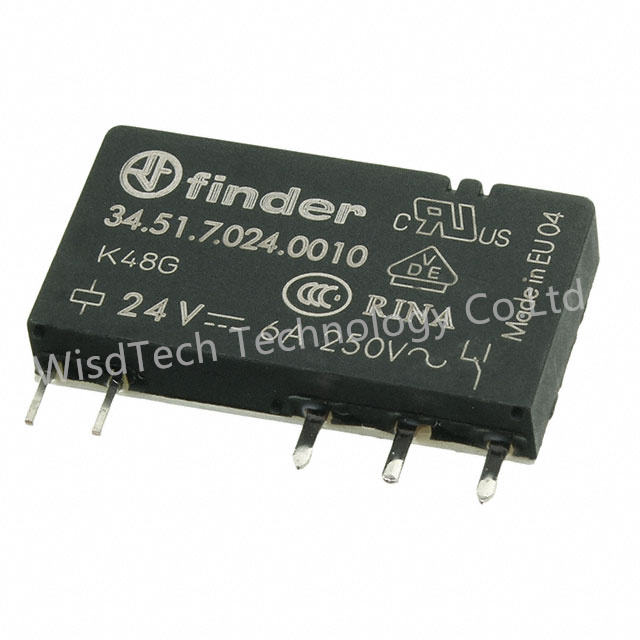

    34.51.7.024.0010 Electromagnetic SPDT Relay Ucoil 24VDC 6A

    34.51.7.024.0010 General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole

    TYPE
    DESCRIPTION
    Category
    Mfr
    PackagingTube
    Series
    Part Status
    Active
    Mounting Type
    Coil Voltage
    Contact Form
    SPDT (1 Form C)
    Contact Rating (Current)
    6 A
    Switching Voltage
    400VAC - Max
    Load - Max Switching
    2400VA
    Coil Current
    7.1 mA
    Coil Type
    Non Latching
    Features
    -
    Termination Style
    PC Pin
    Seal Rating
    Sealed - Flux Protection
    Coil Insulation
    -
    Must Operate Voltage
    16.8 VDC
    Must Release Voltage
    -
    Operate Time
    5 ms
    Release Time
    3 ms
    Operating Temperature
    -40°C ~ 85°C
    Contact Material
    Silver Nickel (AgNi)
    Approval Agency
    CCC, cURus, RINA, VDE
    Relay Type
    Coil Resistance
    3.35 kOhms
    Base Product Number

    The Finder 34.51 series are ultra slim PCB relays. These electromechanical relays features single pole,

    sensitive DC coil in ultra slim 5mm package.

    • SPDT contact configuration
    • flux proof version
    • UL, CSA and VDE standards approved
    • Low coil power of 170mW
    • Switching capacity of 6A at 250VAC
    • Cadmium free contact materials
    • 6kV (1.2/50 μs) insulation between coil and contacts
    • 8/8mm clearance distance
    • 35mm rail mount via screw or screwless sockets

    Ultra-slim Solid State Relays

    Printed circuit mount

    - direct or via PCB socke

    t35 mm rail mount

    - via screw, screwless or push-in terminalsockets

    • Single circuit output switching options

    - 0.1 A, 48 V DC

    - 0.2 A, 220 V DC

    • Silent, high speed switching with longelectrical life

    • Ultra slim (5 mm), package

    • Sensitive DC Input circuits (Dual AC/DC inputdrive possible using 93 series sockets)

    • UL Listing (certain relay/socket combinations)

    • Wash tight: RT III

    • 3000 V AC insulation, input-output


    Applications

    Industrial, Power Management, Automation & Process Control
