    IHLP1616ABER2R2M11 2.2 µH Shielded Molded Inductor 2.75 A 83.5mOhm Max Nonstandard

    Ask Lasest Price
    Brand Name : Vishay
    Model Number : IHLP1616ABER2R2M11
    Price : Email us for details
    Payment Terms : T/T, Western Union
    Supply Ability : 200pcs
    Delivery Time : 1day
    • Product Details
    • Company Profile

    IHLP1616ABER2R2M11 2.2 µH Shielded Molded Inductor 2.75 A 83.5mOhm Max Nonstandard

    IHLP1616ABER2R2M11 2.2 µH Shielded Molded Inductor 2.75 A 83.5mOhm

    Max Nonstandard

    Vishay
    Product Category:Power Inductors - SMD
    RoHS:Details
    High Power Choke
    SMD/SMT
    1616 (4040 metric)
    Shielded
    2.2 uH
    20 %
    2.75 A
    83.5 mOhms
    3 A
    - 55 C
    + 125 C
    -
    PCB Mount

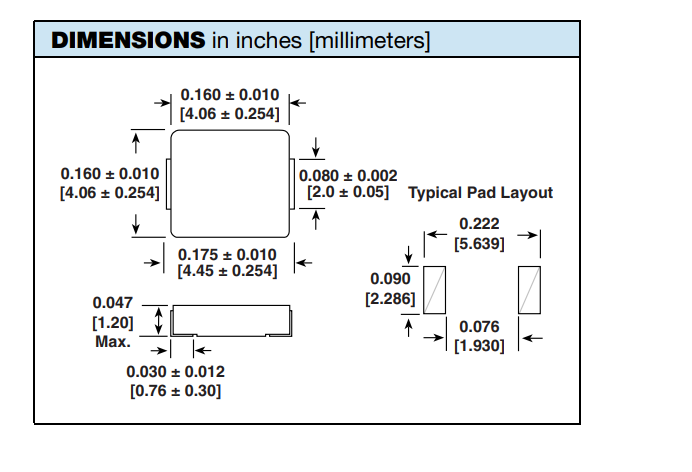

    4.06 mm
    4.06 mm
    1.2 mm
    -
    Composite
    IHLP-11

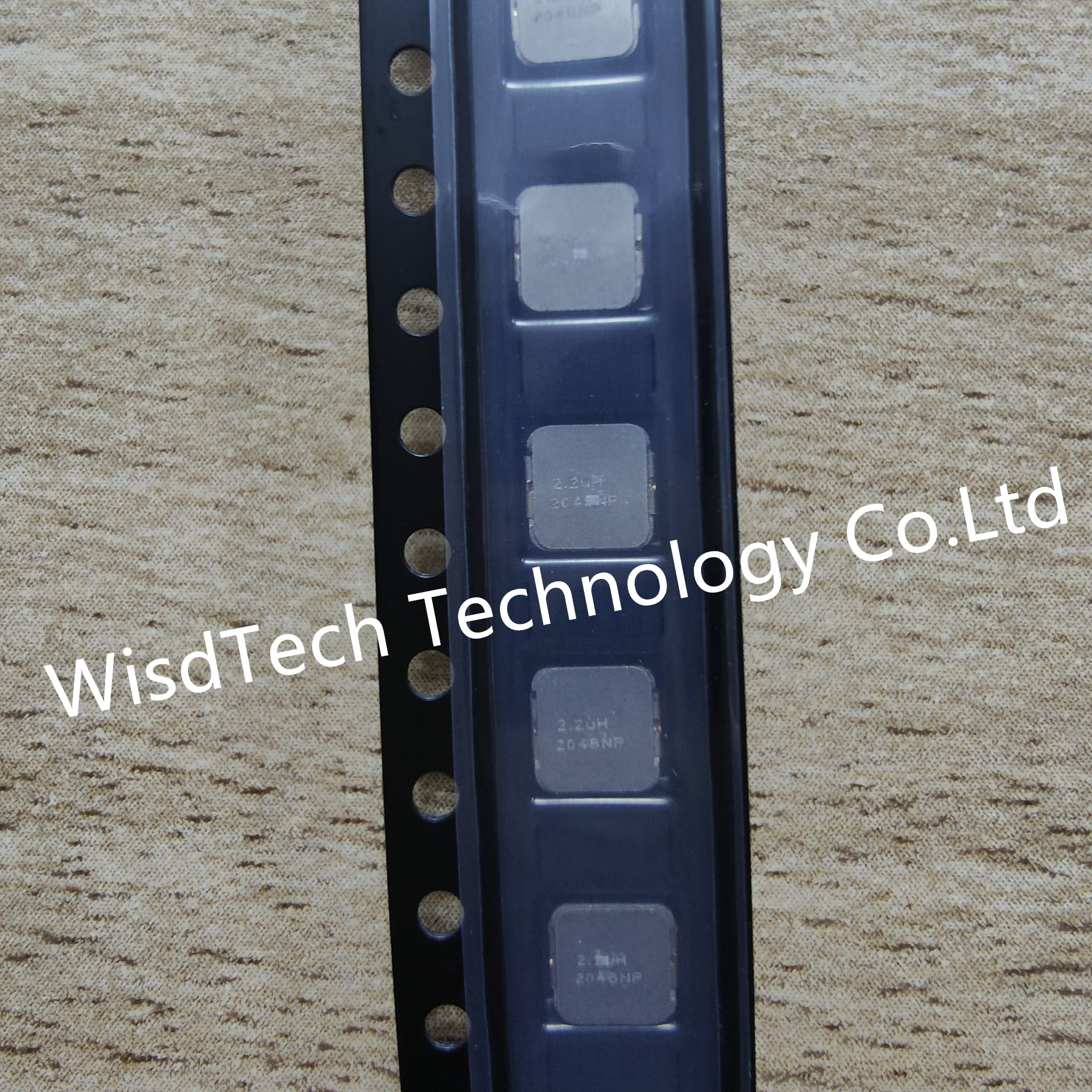

    Reel
    Cut Tape
    MouseReel
    Application:Commercial
    Brand:Vishay / Dale
    Case Code - in:1616
    Case Code - mm:4040
    Core Type:Molded
    Product:Power Inductors
    Product Type:Power Inductors - SMD
    Self Resonant Frequency:49 MHz
    Subcategory:Inductors, Chokes & Coils
    Termination:Standard
    Test Frequency:100 kHz
    Tradename: IHLP
    Unit Weight:0.003139 oz

    FEATURES

    • Shielded construction

    • Lowest DCR/μH, in this package size

    • Handles high transient current spikes withoutsaturation

    • Ultra low buzz noise, due to compositeconstruction

    • Excellent DC/DC energy storage up to 1.0 MHz to2.0 MHz. Filter inductor applications up to SRF

    (see“Standard Electrical Specifications” table)

    IHLP design. PATENT(S): www.vishay.com/patents


    APPLICATIONS

    • PDA / notebook / desktop / server applications

    • High current POL converters

    • Low profile, high current power supplies

    • Battery powered devices

    • DC/DC converters in distributed power systems

    • DC/DC converter for Field Programmable Gate Array(FPGA)



    FEATURES

    • Shielded construction

    • Lowest DCR/μH, in this package size

    • Handles high transient current spikes withoutsaturation

    • Ultra low buzz noise, due to compositeconstruction

    • Excellent DC/DC energy storage up to 1.0 MHz to2.0 MHz. Filter inductor applications up to SRF

    (see“Standard Electrical Specifications” table)

    IHLP design. PATENT(S): www.vishay.com/patents


    APPLICATIONS

    • PDA / notebook / desktop / server applications

    • High current POL converters

    • Low profile, high current power supplies

    • Battery powered devices

    • DC/DC converters in distributed power systems

    • DC/DC converter for Field Programmable Gate Array(FPGA)
