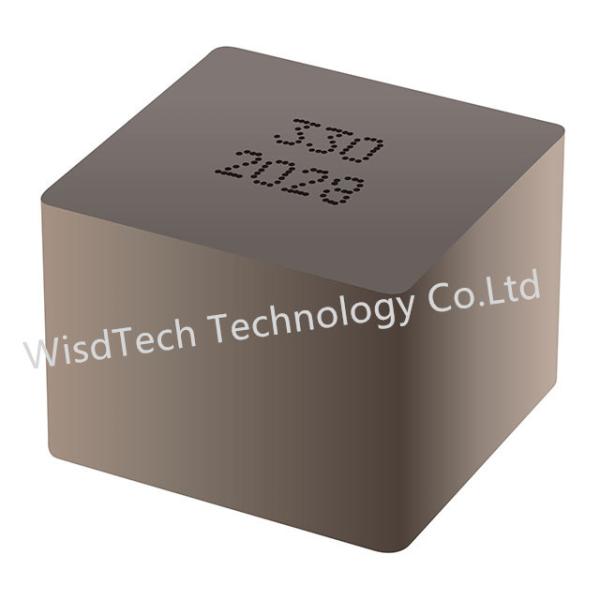

The SRP1513CA-100M is a shielded inductor with an inductance value of 10 μH.

Here are some specifications for this inductor:

• Inductance Value: 10 μH. This represents the amount of inductance the inductor possesses,
• which measures its response to changes in current.
• Shielding: The SRP1513CA-100M is designed with shielding to reduce the impact of external
• interference on the inductor.
• Maximum Current: 25 A. This indicates the maximum current that the inductor can handle
• without exceeding its specified limits.
• Maximum DC Resistance: 7 mΩ. This is the maximum resistance of the inductor when
• a direct current (DC) is applied, and it affects the power dissipation and efficiency of the inductor.
• Nonstandard RF Inductors: The SRP1513CA-100M falls under the category of nonstandard RF
• (Radio Frequency) inductors, which suggests that it may have unique specifications or characteristics
• tailored for RF applications.

These specifications provide a general overview of the SRP1513CA-100M shielded inductor. For

detailed electrical characteristics, application considerations, and other specific information, it is

advisable to consult the datasheet or contact the manufacturer directly.

• Package Type: The SRP1513CA-100M typically comes in a compact surface-mount package, allowing for

• easy integration onto circuit boards.

• Operating Temperature Range: The inductor is designed to operate within a specific temperature range.

• The specific range should be stated in the datasheet provided by the manufacturer.

• Saturation Current: The saturation current represents the maximum current level at which the inductance

• starts to significantly decrease. The datasheet should provide the saturation current value for the

• SRP1513CA-100M inductor.

• Self-Resonant Frequency: Inductors have a self-resonant frequency, which is the frequency at which the

• inductive and capacitive properties of the component interact. The datasheet should specify the self-resonant

• frequency for the SRP1513CA-100M inductor.

• Applications: Shielded inductors like the SRP1513CA-100M are commonly used in various electronic

• applications, including power supplies, DC-DC converters, filtering circuits, and RF circuits.

• The datasheet or application notes may provide more specific guidance on the recommended applications for this inductor.
