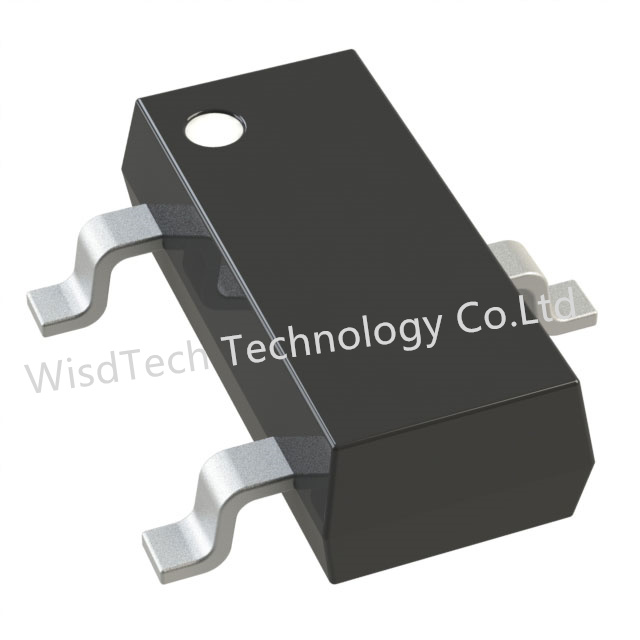

    ZXTN25100BFHTA Bipolar (BJT) Transistor NPN 100 V 3 A 160MHz 1.25 W RF Transistors

    Ask Lasest Price
    Brand Name : Diodes Incorporated
    Model Number : ZXTN25100BFHTA
    Price : Email us for details
    Payment Terms : T/T, Western Union
    Supply Ability : 5000
    Delivery Time : 1day
    • Product Details
    • Company Profile

    ZXTN25100BFHTA Bipolar (BJT) Transistor NPN 100 V 3 A 160MHz 1.25 W RF Transistors

    ZXTN25100BFHTA Bipolar (BJT) Transistor NPN 100 V 3 A 160MHz 1.25 W Surface Mount
    Diodes Incorporated
    Product Category:Bipolar Transistors - BJT
    RoHS:Details
    SMD/SMT
    SOT-23-3
    NPN
    Single
    100 V
    170 V
    7 V
    200 mV
    3 A
    1.81 W
    160 MHz
    - 55 C
    + 150 C
    ZXTN25100
    Reel
    Cut Tape
    MouseReel
    Brand:Diodes Incorporated
    Height:1 mm
    Length:3.05 mm
    Product Type:BJTs - Bipolar Transistors
    Subcategory:Transistors
    Technology:Si
    Width:1.4 mm
    Unit Weight:0.000282 oz

    Product Status
    Active
    Transistor Type
    Current - Collector (Ic) (Max)
    3 A
    Voltage - Collector Emitter Breakdown (Max)
    100 V
    Vce Saturation (Max) @ Ib, Ic
    250mV @ 300mA, 3A
    Current - Collector Cutoff (Max)
    50nA (ICBO)
    DC Current Gain (hFE) (Min) @ Ic, Vce
    100 @ 10mA, 2V
    Power - Max
    1.25 W
    Frequency - Transition
    160MHz
    Operating Temperature
    -55°C ~ 150°C (TJ)
    Mounting Type
    Surface Mount
    Package / Case
    TO-236-3, SC-59, SOT-23-3
    Supplier Device Package
    SOT-23-3

    Features
    BVcEo > 100V
    BVcEx > 170V Forward Blocking Voltage
    BVEco > 6V Reverse Blocking Voltage
    Ic = 3A high Continuous Collector Current
    Low Saturation Voltage, VCE(SAT) < 80mV @1A
    RCE(SAT)= 67mQ for a Low Equivalent On-Resistance
    1.25W Power Dissipation
    hFE Specified up to 3A for High Current Gain Hold Up
    Complementary PNP Type: ZXTP25100BFH
    Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
    Halogen and Antimony Free.“Green" Device (Note 3)
    Qulified to AEC-Q101 Standards for High Rellbllity


    Mechanical Data
    Case: SOT23
    Case Material: molded plastic, "Green" Molding Compound;
    UL Flammability Classification Rating 94V-0
    Moisture Sensitivity: Level 1 per J -STD-020
    Terminals: Finish - Matte Tin Plated Leads, Solderable per
    MIL-STD-202, Method 2080@3)
    Weight 0.008 grams (Approximate)


    Applications
    Lamp Relay and Solenoid Drivers
    General Switching in Automotive and Industrial Applications
    ●Motor Drive and Control


    1. Type: NPN (Negative-Positive-Negative) Bipolar Junction Transistor
    2. Voltage Rating: 100 V (maximum collector-emitter voltage)
    3. Current Rating: 3 A (maximum collector current)
    4. Frequency: 160 MHz (maximum frequency at which it can operate effectively)
    5. Power Dissipation: 1.25 W (maximum power that can be dissipated by the transistor)
    6. Package Type: Surface Mount (SMT) package, which is a type of package that allows
    • for mounting on the surface of a printed circuit board (PCB) without requiring through-hole soldering.
